PowerQuest^® VPi is a PC based software package. When combined with the ASCO Communications Interface module (ACC 72A), the ASCO 5120 Telephone Interface Module and the ASCO 5200 Series Power Manager it provides the most economical communication system for monitoring and control of power transfer switches and engine generators.

The RS-485 network allows communications with up to 32 power transfer switches and four engine generators. An analog phone connection and ASCO telephone interface module allow for direct dial up, monitoring and control of remote locations. The ASCO Power Manager not only allows you to view current power and power factor readings, but also has a programmable kW set point to initiate transfer of loads to a standby source for peak shaving operations.

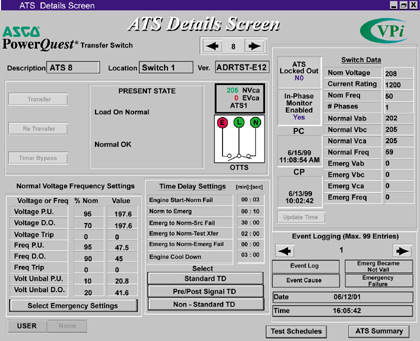

Convenient One-Line Diagram

• Colored icons highlighted to show source availability and which source is connected to load.
• Contacts move on icon to indicate main contact position of transfer and bypass switch. (Automatic transfer and automatic transfer and bypass isolation switches must be provided with optional accessory 14 contacts.)
• Bypass switch contacts appear on icon when configured by user input data.

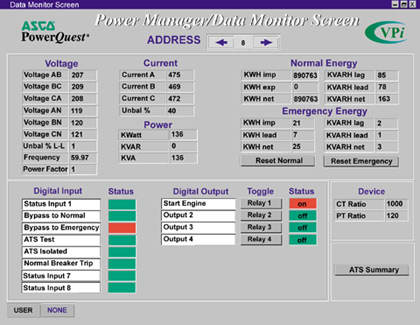

• Voltage: phase to phase; phase to neutral and voltage unbalance.
• 3 phase currents and neutral (optional).
• Frequency.
• Kilowatt hours - normal and emergency.
• Status and control of four relay outputs.
• Status of eight digital inputs.
• Device ratings: CT and PT ratios

• ATS rating and identification data is displayed.
• Allows remote testing and time delay bypass.
• Voltage, frequency, phase sequence, voltage unbalance and time delay settings can be checked.
• Viewing of engine exercise schedules.
• Displays phase to phase voltage on normal and emergency.
• Provides complete system status message from 7000 series microprocessor controller.
• View event log on the last 99 events for each ATS.
• Arrange test schedules for transfer switches.
• Provides for monitoring of local site or remote sites.

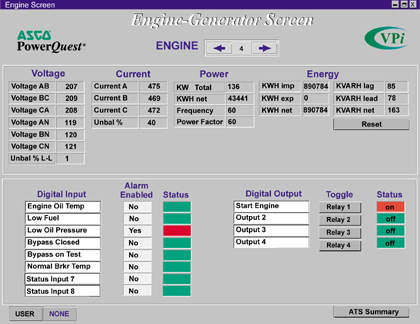

• Voltage: phase to phase; phase to neutral.
• Viewing of engine exercise schedules.
• Current for each phase.
• Kilowatt hours - normal and emergency.
• Frequency and power factor.
• Status and control of four digital outputs which can be customized by the user.
• Status of eight digital inputs.
• "Alarm Enabled" selection. These alarms flash the "engine-generator" icon on the summary screen.
• Digital inputs for engine malfunctions are derived from engine mounted sensors (supplied by others).
