| INSTALLATION DIAGRAMS |
|
These diagrams illustrate
typical installations. Your configuration may be slightly
different.
You can use any combination that works for you. Be Creative! This page is provided to assist consumers to understand the different ways to connect transfer switches for portable generators. GeneratorJoe recommends that you install a stationary generator with an automatic transfer switch. Call us to help you figure out how to buy. Call 707 542-2224 Portable vs Stationary? see this Link |
|
IMPORTANT
Transfer Switches and Transfer Panels should be installed by a qualified electrician familiar with residential wiring and electrical codes. Since all states require that the installation be compliant with all applicable laws and electrical codes, it is best to check with a local electrician in your area or your building department. Estimated installation time is 1-6 hours, depending on your skill level and experience.
Transfer
switches and panels are intended for single phase residential
or light commercial use. If you have any questions
about your specific manual transfer switch installation,
you may call GeneratorJoe
at 707 542-2224 or Email
[email protected].
|
|
A. Indoor
|
|
B. Corded Outdoor Outlet
|
|

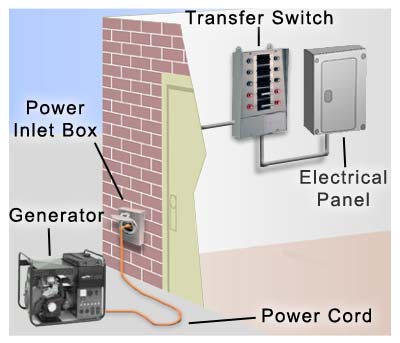

C: Hardwire Outdoor
Outlet
|
|

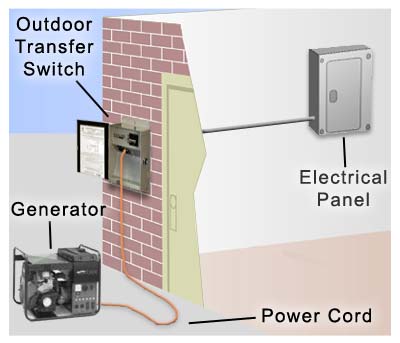

D: Outdoor
We do not recommend any particular brand of transfer switches but be user to buy switches that are UL Listed for the USA and CSA Certified for Canada
|
